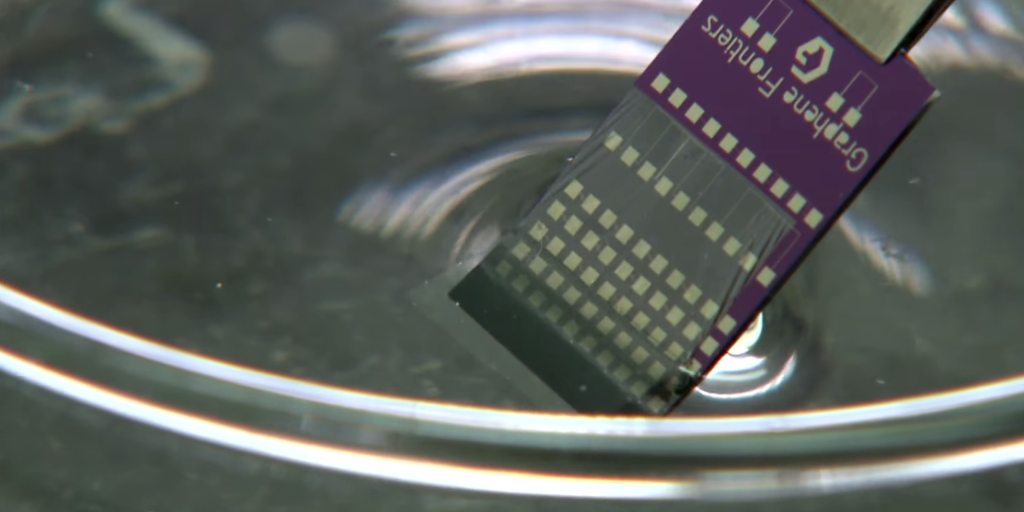

Introduction: One Atom Thick, a Thousand Headaches Deep

Graphene has one of the best elevator pitches in science: it is a single layer of carbon atoms arranged in a honeycomb pattern. That sounds almost suspiciously simple, like calling a rocket “a tube with ambition.” In reality, the process of making graphene is absurdly complex because perfection matters at the atomic level. A tiny wrinkle, tear, oxygen impurity, grain boundary, or leftover metal particle can change how the material conducts electricity, transfers heat, bonds with other materials, or behaves inside a device.

The main keyword here is graphene manufacturing, but the real story is bigger than one phrase. It includes chemical vapor deposition, mechanical exfoliation, graphene oxide production, liquid-phase exfoliation, epitaxial growth, roll-to-roll graphene transfer, defect control, contamination management, and quality testing. In plain English: scientists are trying to make a sheet of carbon so thin it practically looks fictional, then move it, pattern it, scale it, and sell it without ruining the very properties that made it exciting in the first place.

Graphene has been described as strong, flexible, transparent, lightweight, and highly conductive. Those qualities explain why people keep imagining graphene batteries, flexible screens, ultra-thin sensors, transparent electrodes, stronger composites, faster electronics, water filters, biomedical devices, and smarter coatings. But there is a catch. Graphene is not one product. It is a family of materials with different thicknesses, defects, oxygen content, flake sizes, substrates, and purity levels. “Graphene” in a lab paper and “graphene” in a commercial additive can be about as similar as a violin and a cardboard box with strings.

What Makes Graphene So Difficult to Produce?

Graphene is difficult because the best version of it is almost offensively precise. Ideally, it is one atom thick, continuous, clean, defect-light, and placed exactly where it needs to be. Manufacturing hates that sentence. Factories prefer materials that tolerate rough handling, wide margins, and a little dirt. Graphene prefers the treatment of a celebrity cat: controlled environment, careful movement, and no surprises.

The Problem of Being One Atom Thick

Most materials have bulk. They can hide defects inside their volume. Graphene has no such luxury. Since it is a two-dimensional material, its surface is essentially its entire identity. A contaminant on top is not “just on the surface”; it can dominate the behavior of the material. A tear is not a cosmetic issue; it can break electrical continuity. A wrinkle is not a charming imperfection; it can scatter electrons, reduce transparency, or interfere with device fabrication.

This is why graphene production is not merely about creating carbon sheets. It is about creating the right carbon sheets for the right use. A composite material may tolerate small flakes or multilayer graphene. A transparent electrode for a display or solar cell may require large-area, continuous, clean graphene film. A quantum electrical standard or advanced electronic device may demand extremely high uniformity and very low defect density. One material name, many manufacturing nightmares.

The Famous Tape Method: Brilliant, Beautiful, and Completely Impractical

The story of graphene often begins with mechanical exfoliation, sometimes casually described as the “tape method.” The idea is conceptually simple: graphite is made of stacked graphene layers, and weak forces hold those layers together. Peel the layers apart enough times, and you can isolate extremely thin flakes, including single-layer graphene.

As a scientific breakthrough, this was elegant. As a factory process, it is hilariously unhelpful. It can produce high-quality flakes for research, but it is not a practical path to mass manufacturing. You cannot run the global electronics industry on tiny flakes discovered like microscopic treasure after a peeling session. It is fantastic for physics experiments, not for making kilometers of transparent conductive film.

Still, the tape method matters because it gave researchers a clean reference point. It helped reveal what graphene could do when it was close to ideal. In a way, it created the dream. Manufacturing has spent years trying to catch up with that dream without needing a graduate student, a microscope, and the patience of a saint for every sample.

Chemical Vapor Deposition: The Industrial Workhorse with Trust Issues

Chemical vapor deposition, or CVD, is one of the most important routes for making large-area graphene films. In broad terms, CVD uses a carbon-containing gas that flows over a heated metal catalyst, often copper. Carbon atoms separate from the gas and assemble into graphene on the metal surface. It sounds like a magic trick performed inside a very expensive oven.

CVD is attractive because it can produce large sheets of graphene, including monolayer films. It can be adapted for electronics, sensors, transparent electrodes, and other applications where continuous film matters. But it also brings a buffet of complications. Temperature, pressure, gas purity, flow rate, copper surface quality, oxygen contamination, cooling speed, and growth time all matter. Change one variable, and the final material may change dramatically.

Why Copper Matters

Copper is widely used because it helps graphene grow as a thin layer rather than encouraging thick carbon buildup. However, copper is not just a passive table where graphene politely sits down. Its surface roughness, crystal orientation, impurities, and grain structure influence how graphene nucleates and spreads. If graphene grows from many small islands that merge together, the seams between those islands become grain boundaries. Those boundaries can affect mechanical strength and electronic performance.

In other words, even when graphene “covers” a surface, the quality of that coverage matters. A film can be large but electrically disappointing. It can look continuous but contain defects. It can test well in one location and poorly in another. This is why graphene characterization is such a large part of the manufacturing conversation. Making graphene is one challenge; proving what you made is another.

The Oxygen Problem

Recent research has highlighted how trace oxygen can affect graphene growth. That is a perfect example of why the process feels absurd. We are not talking about obvious contamination like dropping a sandwich into the reactor. We are talking about tiny amounts of oxygen changing reproducibility and quality. For industrial production, reproducibility is everything. A process that works beautifully on Tuesday but misbehaves on Thursday is not a manufacturing process; it is a prank wearing a lab coat.

The Transfer Problem: Congratulations, You Made Graphene. Now Move It Without Destroying It.

CVD graphene often grows on metal, but many real applications need graphene on glass, silicon dioxide, polymers, flexible substrates, or device layers. That means the graphene must be transferred. This is where the drama begins.

Imagine making an atom-thick sheet on copper and then trying to relocate it without tearing, wrinkling, contaminating, stretching, folding, doping, or leaving behind residue. Now imagine doing that not once, but at industrial scale. This is the transfer problem, and it is one of the biggest reasons graphene has not instantly taken over the world.

Wet transfer methods may involve support layers, chemical processing, washing, and careful placement. Dry transfer methods try to reduce liquid-related contamination. Roll-to-roll transfer aims to make the process continuous and scalable. Each method has trade-offs. Some are cleaner but harder to scale. Some are scalable but can introduce mechanical stress. Some are promising in research but not yet cheap enough, fast enough, or consistent enough for every market.

The transfer step is especially important for transparent electrodes, flexible electronics, and solar-related technologies. A sheet that performs beautifully on copper can lose performance after transfer if it develops tears, cracks, wrinkles, or residues. The cruel joke of graphene manufacturing is that the best material in the world can become mediocre because it was moved badly.

Graphene Oxide: Easier to Make, Harder to Perfect

Another major route is graphene oxide, often shortened to GO. Graphene oxide is made by chemically oxidizing graphite so that the layers become easier to separate in liquid. This route is appealing because it can produce dispersions that are easier to process into coatings, membranes, films, inks, composites, and other materials.

But graphene oxide is not the same thing as pristine graphene. Oxygen-containing groups disrupt the carbon network, changing electrical conductivity and other properties. Reduced graphene oxide, or rGO, attempts to remove some oxygen and restore graphene-like behavior, but it usually does not fully recover the perfection of pristine graphene. Think of it as flattening a crumpled dollar bill. It may still spend, but it is not mint condition.

Graphene oxide production also raises questions about consistency, environmental impact, chemical handling, purification, waste, and scalability. For some applications, GO and rGO are excellent because they are processable and relatively affordable. For high-performance electronics, they may not deliver the same quality as carefully grown CVD graphene. Again, the application decides the acceptable compromise.

Liquid-Phase Exfoliation: The Blender Approach, but Smarter

Liquid-phase exfoliation tries to separate graphite into graphene or few-layer graphene flakes using solvents, surfactants, sonication, shear mixing, or other processing techniques. This method can be useful for producing graphene flakes at larger quantities. Those flakes can be added to inks, coatings, polymers, cement, batteries, supercapacitors, lubricants, and composite materials.

The challenge is control. Manufacturers care about flake thickness, flake size, defect density, concentration, stability, and contamination. A batch full of thick graphite-like particles is not the same as a batch rich in few-layer graphene. A material that disperses beautifully in one solvent may clump in another. A coating that works in the lab may fail when applied on a production line.

Liquid-phase exfoliation can be practical, but it rarely produces the kind of large, continuous monolayer sheet needed for advanced electronics. It is better suited to applications where graphene acts as an additive or functional ingredient. That may sound less glamorous than graphene chips, but it could be commercially important. Sometimes the future arrives not as a transparent smartphone, but as a better coating, stronger composite, or more conductive ink.

Epitaxial Graphene: Growing on Silicon Carbide

Epitaxial graphene is often made by heating silicon carbide so that silicon leaves the surface and carbon rearranges into graphene layers. This method can produce high-quality graphene directly on a useful substrate, which avoids some transfer problems. That is a major advantage because transfer is where many graphene dreams go to develop wrinkles.

However, epitaxial graphene is not a universal solution. Silicon carbide wafers are more expensive than many common substrates, and controlling the number of layers, uniformity, and electronic properties still requires careful engineering. It can be excellent for specialized electronics, metrology, and research applications, but it is not necessarily the lowest-cost answer for bulk graphene powders, coatings, or consumer products.

Flash Joule Heating: Turning Carbon Waste into Graphene-Like Material

Flash Joule heating is one of the more exciting newer approaches. In broad terms, it uses a rapid electrical pulse to heat carbon-containing material very quickly, converting it into graphene-like material. Researchers have explored carbon sources ranging from waste materials to industrial byproducts. Compared with slow, delicate film growth, this sounds refreshingly dramatic: zap the carbon, get graphene.

Of course, the details still matter. Flash graphene may be especially interesting for composites, construction materials, batteries, plastics, asphalt, concrete, and other bulk applications. It does not automatically replace electronic-grade CVD graphene. The graphene world is not one race with one winner. It is more like a chaotic sports league where powders, films, flakes, oxides, and monolayers all compete in different stadiums.

Still, flash Joule heating shows why graphene production remains an active field. Scientists and engineers are not merely polishing old methods; they are inventing new routes that could make graphene more affordable, scalable, and sustainable for applications where perfect single-crystal sheets are not required.

Roll-to-Roll Graphene: The Dream of Continuous Production

Roll-to-roll graphene manufacturing aims to turn graphene production into something closer to printing or film processing. A flexible substrate moves through growth, transfer, or coating stages continuously. This approach is attractive for transparent electrodes, flexible electronics, sensors, membranes, and large-area films.

The dream is obvious: instead of making tiny samples one at a time, produce long sheets of graphene-based film. The challenge is equally obvious: everything that can go wrong in a small batch can go wrong continuously, but faster and with a larger invoice. Temperature uniformity, web tension, copper foil quality, residence time, film coverage, transfer speed, adhesion, wrinkles, and inspection all become critical.

Roll-to-roll production is one of the clearest examples of the gap between scientific possibility and manufacturing reality. A lab can demonstrate impressive continuous graphene growth or transfer. A factory must do it reliably, economically, safely, and repeatedly while meeting customer specifications. The atoms do not care about your quarterly targets.

Quality Control: The Unsexy Hero of Graphene Manufacturing

Graphene headlines often focus on strength, conductivity, and futuristic applications. Manufacturing teams focus on Raman spectroscopy, sheet resistance, optical transmittance, atomic force microscopy, scanning electron microscopy, carrier mobility, layer number, oxygen content, impurity levels, and batch-to-batch repeatability. It is less glamorous, but it is where commercialization lives.

Quality control is difficult because graphene can be defined in many ways. Is it one layer or a few layers? Is it a continuous film or flakes? How large are the flakes? How many defects are present? Is there residual copper? Is there polymer residue from transfer? Is the sheet doped unintentionally by the environment? Does it maintain performance after bending, heating, coating, washing, or patterning?

Without clear characterization, the word “graphene” can become marketing fog. Serious buyers need specifications. Researchers need reproducibility. Regulators and safety teams need accurate material descriptions. Investors need to know whether a company is making advanced graphene or expensive black powder with excellent branding.

Why Graphene Has Not Replaced Everything Yet

Graphene has not replaced silicon, steel, copper, plastic, glass, batteries, screens, and common sense because materials do not win by being impressive in isolation. They win by being manufacturable, affordable, reliable, compatible with existing processes, and better enough to justify switching costs.

Silicon is not perfect, but the semiconductor industry knows how to process it with astonishing precision. Copper is not atomically thin, but it is cheap, conductive, and familiar. Steel is heavy, but global infrastructure understands it. Graphene must beat entrenched materials not only in performance but also in cost, supply chain readiness, processing compatibility, durability, safety, and standards.

This does not mean graphene is overhyped nonsense. It means graphene is a materials platform, not a magic wand. Its most successful uses may be targeted: improving composites, enhancing coatings, enabling sensors, supporting membranes, boosting thermal management, strengthening cementitious materials, or serving as transparent conductive films in specialized devices. The revolution may arrive in pieces rather than one dramatic “graphene day” when everything becomes black, flexible, and slightly more expensive.

Real-World Examples of Graphene Manufacturing Trade-Offs

Example 1: Transparent Electrodes

Graphene is attractive for transparent electrodes because it can conduct electricity while remaining highly transparent. That sounds ideal for displays, solar cells, touch panels, and flexible electronics. But transparent electrodes need low sheet resistance, high optical transparency, uniform film quality, clean transfer, and scalable patterning. A beautiful graphene sheet that tears during transfer is not a product; it is a very thin disappointment.

Example 2: Composite Materials

For composites, manufacturers may not need perfect monolayer graphene. Few-layer graphene flakes or graphene nanoplatelets can improve mechanical strength, barrier properties, conductivity, or thermal performance when dispersed properly. The main challenge becomes mixing. Graphene likes to stack, clump, and behave like it has social anxiety in polymers. Good dispersion is essential. Poor dispersion can turn an expensive additive into decorative soot.

Example 3: Batteries and Supercapacitors

Graphene-related materials can improve electrode conductivity, surface area, and mechanical stability in energy storage systems. However, battery performance depends on the whole cell design, not just one glamorous ingredient. Electrolyte compatibility, electrode architecture, manufacturing cost, cycle life, safety, and scalability all matter. Graphene can help, but it cannot single-handedly rescue a poorly engineered battery.

The Absurd Complexity Is Also the Opportunity

The process of making graphene is absurdly complex because the reward is absurdly interesting. A material that is thin, strong, conductive, flexible, and chemically tunable invites engineers to dream. The complexity is not a footnote; it is the main event. Whoever controls graphene growth, transfer, purification, dispersion, and quality at scale controls the difference between laboratory curiosity and industrial product.

Future progress will likely come from several directions at once. Oxygen-free CVD may improve reproducibility for high-quality films. Better transfer methods may reduce tears and residues. Roll-to-roll systems may lower costs for large-area applications. Flash Joule heating may expand bulk graphene production from carbon-rich waste streams. Improved standards may help buyers compare products honestly. Better modeling and process control may reduce the trial-and-error that has haunted the field.

The punchline is that graphene is simple only in the way a piano is simple: a few materials arranged correctly. The music is the hard part.

Experience Notes: What Working Around Graphene Teaches You

Anyone who spends time studying graphene manufacturing quickly learns that the material has a talent for humbling people. On paper, the process can look clean and linear: choose a method, make graphene, test graphene, apply graphene. In practice, every stage branches into a dozen decisions. The substrate matters. The atmosphere matters. The speed of heating and cooling matters. The solvent matters. The cleaning step matters. The person handling the sample matters. Sometimes even the room environment seems to join the committee.

One practical lesson is that “graphene” should never be accepted as a complete description. The first useful question is: what kind of graphene? A supplier offering graphene powder for composite reinforcement is not selling the same thing as a lab growing monolayer CVD graphene on copper. Graphene oxide for membranes is different from reduced graphene oxide for conductive films. Few-layer graphene flakes for coatings are different from wafer-scale graphene for electronics. Without details, the word graphene is more of a category than a specification.

Another experience-based lesson is that scaling is not just “doing the same thing bigger.” A small CVD sample may look excellent, but scaling to a larger foil or wafer introduces nonuniform temperature zones, gas-flow differences, inconsistent nucleation, and more chances for contamination. A transfer method that works for a postage-stamp-sized sample may fail when the film becomes large and flexible. Wrinkles that seem minor under a microscope can become serious performance problems across a device area.

Testing also teaches patience. Graphene can look fine visually and still perform poorly. A film may appear continuous but have hidden grain boundaries or residues. A powder may be labeled high-quality but contain a wide distribution of flake sizes and thicknesses. Serious evaluation requires multiple characterization methods, not just one impressive image or one marketing-friendly number. Raman spectroscopy, conductivity testing, microscopy, thermal analysis, surface chemistry, and application-specific testing often need to work together.

The biggest lesson is that graphene rewards realistic expectations. It is not a miracle ingredient that automatically improves everything. Add too little and nothing happens. Add too much and processing becomes difficult. Disperse it badly and performance may drop. Choose the wrong grade and the application fails. But when the material is matched carefully to the use case, graphene can be genuinely powerful. The complexity is not a reason to dismiss it. It is a reminder that advanced materials do not become useful by being famous; they become useful by being understood, controlled, tested, and manufactured with discipline.

Conclusion: Graphene Is Easy to Describe and Hard to Make

The process of making graphene is absurdly complex because graphene sits at the intersection of chemistry, physics, engineering, manufacturing, and quality control. Mechanical exfoliation can produce beautiful flakes but struggles with scale. CVD can create large films but demands strict control and difficult transfer. Graphene oxide is processable but chemically altered. Liquid-phase exfoliation can produce useful flakes but requires careful size and quality management. Epitaxial growth avoids some transfer problems but brings cost and substrate constraints. Flash Joule heating offers exciting bulk possibilities but serves different markets than pristine electronic-grade film.

That is the honest story of graphene manufacturing. It is not a failure story. It is a hard-materials story. The same properties that make graphene exciting also make it unforgiving. When your product is one atom thick, there is nowhere for mistakes to hide.

Graphene will likely continue moving into real products through targeted applications rather than one grand takeover. The future may include better sensors, smarter coatings, stronger composites, more efficient energy devices, transparent electrodes, advanced membranes, and specialty electronics. But behind every success will be the same demanding question: can we make the right graphene, at the right quality, at the right cost, again and again?
