There are ordinary Arduino projects, and then there are projects that make the soldering iron look up from the workbench and whisper, “Are we sure about this?” An Arduino hydrogen blimp belongs proudly in the second category. It is part robotics experiment, part lighter-than-air aviation lesson, part chemistry cautionary tale, and part living-room comedy starring a tiny airship that drifts around like it owns the place.

The idea is wonderfully simple at first glance: build a lightweight frame, attach small motors, add a microcontroller, send wireless commands, and use a balloon envelope for lift. But then the word hydrogen enters the room wearing tap shoes and carrying a box of matches. Suddenly, this cute DIY airship is not just about thrust, buoyancy, and Arduino code. It is also about risk management, materials, electrical reliability, static charge, and why helium became the “boring but alive” choice for most hobby blimps.

This article explores the famous Arduino hydrogen blimp concept, what makes it technically interesting, why it caught the attention of hardware hackers, and what modern makers can learn from it without accidentally auditioning for a safety training video.

What Was the Arduino Hydrogen Blimp?

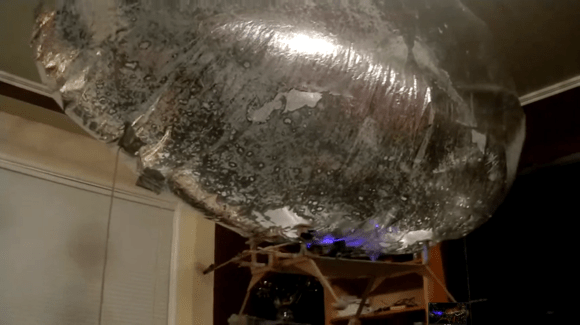

The project that inspired the memorable title “An Arduino Hydrogen Blimp… Oh The Humanity!” was a small radio-controlled airship built around lightweight electronics and a homemade lifting-gas setup. The design used tiny DC motors for propulsion, a featherweight frame, an Arduino-based controller, and wireless communication to steer the craft indoors.

At its heart, this was a classic maker project: take familiar components, combine them in an unusual way, and learn by building. The Arduino handled commands and motor control. Wireless modules acted like an invisible control cable. The structure had to be light enough that the balloon could lift it, yet sturdy enough that it did not fold itself into a sad little pretzel at the first sign of airflow.

The reason the build became especially memorable was not the Arduino. It was the hydrogen. The original project generated hydrogen for lift, which is chemically fascinating but practically risky. Hydrogen is the lightest element and gives slightly more lift than helium, but it is also flammable across a wide range of concentrations in air. In plain English: it floats beautifully, but it also deserves a giant neon “respect me” sign.

Why Arduino Makes Sense for a DIY Blimp

Arduino boards are popular in robotics because they make physical computing approachable. A board such as the Arduino Uno, built around the ATmega328P microcontroller, offers digital input/output pins, PWM outputs, analog inputs, USB programming, and a huge ecosystem of tutorials and libraries. For a DIY blimp, those features are exactly the kind of practical simplicity that keeps the project from becoming a 400-page aerospace thesis.

A small airship does not need enormous computing power. It needs reliable motor commands, predictable timing, low weight, and easy debugging. Arduino is good at reading control signals, sending PWM signals to motors, managing servos, and handling simple sensor input. In a blimp, those tasks can translate into turning left, turning right, moving forward, descending slightly, or hovering with all the grace of a sleepy goldfish.

Motor Control: Tiny Props, Big Responsibility

A blimp moves differently from a drone. A quadcopter depends on fast motor response to stay in the air. Lose a motor wire and the drone may become a plastic lawn dart. A lighter-than-air blimp is more forgiving because buoyancy does the lifting. The motors are mainly for steering and forward motion. That makes a blimp an excellent platform for beginners learning about robotics, as long as the lifting gas is safe.

Small DC motors can be driven through a motor driver or transistor circuit, with the Arduino controlling speed through PWM. The trick is to keep the propulsion system light and efficient. Every wire, battery, motor mount, and dab of glue matters. A blimp builder quickly learns that “just one more bracket” can become “why is my aircraft now a floor decoration?”

Wireless Control and the XBee Era

Many early Arduino blimp builds used XBee-style wireless modules because they provided simple serial communication without forcing hobbyists to become radio-frequency engineers overnight. XBee modules were known for point-to-point and multipoint communication, making them useful for remote sensors, robots, and experimental vehicles.

For a radio-controlled blimp, wireless communication lets the pilot send commands from a handheld transmitter or computer to the onboard Arduino. The onboard controller interprets those commands and adjusts the motors. It sounds simple, but reliability matters. A lost command may not be dramatic at walking speed, but a blimp drifting toward a ceiling fan can still create a surprisingly tense action sequence.

Hydrogen vs. Helium: The Lift Debate Nobody Wins Casually

Hydrogen has one undeniable advantage: lift. Because hydrogen gas is lighter than helium, it can provide slightly more buoyancy for the same volume. That difference appeals to experimenters trying to lift every gram of electronics. When your entire payload budget is measured in paperclips, a small lift advantage feels like discovering a secret level in a video game.

But helium has a major advantage: it is inert. It does not burn. It does not turn a spark into an event. It is more expensive and less abundant on Earth than many people assume, but for hobby balloons and indoor blimps, helium is the sensible choice. NASA scientific balloons commonly use helium for large research missions, and the FAA’s balloon guidance treats lifting gas selection as a serious operational decision involving compatibility, cost, capacity, availability, location, and gas stability.

Hydrogen is not “evil.” It is used in serious industries and even in some weather balloon operations under engineered safety systems, procedures, ventilation, and oversight. The problem is scale and context. A professional hydrogen system with codes, shutoffs, training, sensors, and site approval is very different from a hobbyist mixing chemistry near a balloon envelope, batteries, motor brushes, loose wires, static electricity, and the family sofa.

The Hindenburg Shadow: Why the Title Still Works

The phrase “Oh, the humanity!” is forever linked with the Hindenburg disaster of 1937, when the German airship burned during its landing attempt in Lakehurst, New Jersey. The incident became one of the most famous airship tragedies in history, not only because of the loss of life but also because it was captured in dramatic news coverage.

Modern discussions of the Hindenburg are more nuanced than the simple “hydrogen equals disaster” version. Investigators and historians have debated ignition sources, static electricity, leaking gas, weather conditions, and the role of the airship’s outer materials. Still, one practical lesson remains clear: hydrogen in airship applications demands serious engineering respect. It is not a casual party trick. It is a flammable gas that can burn rapidly when mixed with air and exposed to ignition.

That is why the Arduino hydrogen blimp is both fascinating and funny in a nervous-laughter kind of way. It combines a toy-like scale with a historically loaded lifting gas. The result is a project that makes makers smile, engineers calculate, and safety officers slowly remove their glasses.

Design Lessons from a Tiny Airship

Even if nobody should rush to recreate a hydrogen-filled indoor blimp, the project teaches valuable engineering lessons. In fact, the best way to appreciate it is to separate the blimp design from the hazardous gas choice. As an Arduino blimp project, it is packed with useful ideas.

1. Weight Is the Real Boss

In ground robots, extra weight is annoying. In blimps, extra weight is destiny. The airship either lifts or it does not. That means every design choice must be weighed literally and figuratively. Balsa wood, thin wire, small batteries, micro motors, and compact control boards all become important. A maker used to overbuilding everything with plywood and zip ties must learn restraint.

This is one reason blimp projects are excellent teaching tools. They make abstract engineering trade-offs visible. Add a heavier battery and the craft sinks. Use a lighter frame and it flies but may flex. Increase motor size and you gain thrust but lose lift margin. There is no hiding from physics; physics is floating at eye level and judging your glue choices.

2. Buoyancy Changes the Control Problem

A blimp is not a drone and not a car. It has inertia, drift, slow response, and a personality best described as “polite but easily distracted.” Steering requires patience. When a motor turns on, the blimp may respond slowly, then keep moving after the command stops. Good control design must account for momentum and air currents.

This makes blimps great for learning proportional control, sensor feedback, and autonomous navigation. Ultrasonic sensors, infrared sensors, or lightweight distance sensors can help the craft avoid walls. A simple Arduino sketch can start with manual control and grow into semi-autonomous behavior. The goal is not fighter-jet precision. The goal is to avoid bumping into lamps like a confused sky potato.

3. Electrical Reliability Matters More Than It Looks

A loose motor wire on a blimp may not cause a crash, but it can still end the flight or create unpredictable movement. In a hydrogen context, loose wires and sparks are especially unacceptable. Even with helium, clean wiring matters. Motors can create electrical noise, batteries can sag under load, and poor connections can cause resets.

Good blimp design keeps power wiring short, secures all connections, separates motor power from logic power where appropriate, and tests each subsystem before flight. A small onboard power switch, strain relief on wires, and careful battery mounting can make the difference between a graceful flight and a slow-motion electronics sneeze.

Hydrogen Safety: The Non-Negotiable Part

Hydrogen is colorless, odorless, very light, and highly flammable. Safety guides commonly describe its flammability range in air as roughly 4 percent to 75 percent by volume, with very low ignition energy. That means a mixture can become dangerous at concentrations that are not obvious to human senses. A person cannot smell the problem. The room will not politely announce, “Congratulations, you have created a hazard.”

For hobbyists, the practical advice is simple: do not use hydrogen for indoor DIY blimps. Use helium. If the goal is to study hydrogen, do it only in an appropriate laboratory or supervised educational environment with approved equipment, ventilation, trained personnel, and local code compliance. A maker project should produce learning, not scorch marks.

It is also worth noting that many codes and safety practices restrict or prohibit filling inflatable devices with flammable gases unless specific professional safety measures and approvals are in place. Weather agencies and research programs that use hydrogen do so with engineered systems, not kitchen-table improvisation.

How to Build the Safer Version: An Arduino Helium Blimp

The safer spiritual successor to the Arduino hydrogen blimp is an Arduino helium blimp. It keeps the fun: wireless control, tiny motors, lightweight frame, floating flight dynamics, and room-scale robotics. It removes the part where everyone in the room starts calculating evacuation routes.

A practical helium version would include a lightweight balloon envelope, a small Arduino-compatible board, a motor driver, two or three micro DC motors, a small LiPo battery, and a radio module such as Bluetooth, Wi-Fi, or an XBee-style serial radio. The frame can be balsa, carbon fiber rod, foam, or 3D-printed parts used sparingly. The most important design rule is to weigh everything before assembly.

Suggested Feature Upgrades

A modern maker could improve the concept with today’s components. A smaller microcontroller board can reduce payload weight. Tiny coreless motors can improve thrust-to-weight ratio. A lightweight IMU can measure orientation. A time-of-flight distance sensor can help with wall avoidance. A smartphone app can provide touch controls. With careful design, the blimp can become a floating robotics lab rather than a one-trick novelty.

For students, this kind of project brings together physics, electronics, programming, and design thinking. It teaches lift, drag, center of mass, power budgeting, radio communication, and iterative testing. It also teaches humility, because nothing exposes sloppy assumptions faster than a blimp that refuses to rise after you proudly add decorative fins.

Why This Project Still Captures the Maker Imagination

The Arduino hydrogen blimp remains memorable because it sits at the intersection of delight and danger. Makers love projects that feel slightly impossible. A floating robot in a living room is already charming. Add Arduino control and it becomes educational. Add hydrogen and it becomes the kind of story people share with raised eyebrows.

But the deeper appeal is that it shows how accessible technology has become. A few decades ago, building a remotely controlled airship required specialized radio gear and custom electronics. Today, a hobbyist can buy microcontrollers, wireless modules, motor drivers, sensors, and lightweight batteries with a few clicks. The barrier to creativity is lower than ever. The barrier to good judgment, however, remains exactly where it has always been.

Common Mistakes in DIY Blimp Projects

The first common mistake is underestimating weight. Builders often calculate the lift of the balloon but forget tape, solder, connectors, motor mounts, and the emotional weight of disappointment. Always weigh components before committing to a design.

The second mistake is poor center-of-mass placement. If the electronics hang too far forward, the blimp noses down. Too far back, it flies like a lazy seahorse. A good gondola design allows small adjustments so the craft can be trimmed after assembly.

The third mistake is too much thrust in the wrong direction. Tiny blimps do not need to blast across the room. They need controlled, gentle movement. More power can make the craft harder to steer and more likely to collide with furniture, pets, or that one fragile lamp nobody remembers buying until impact.

The fourth mistake is ignoring airflow. Indoor air currents from fans, vents, open doors, and human movement can push a blimp around. Testing should happen in a calm space with plenty of clearance. Even a safe helium blimp can turn a tidy room into an obstacle course.

Experience Notes: What It Feels Like to Work Around an Arduino Blimp

The first experience most builders have with an Arduino blimp is not flight. It is negotiation. You negotiate with weight, with lift, with battery capacity, with wiring, and with the balloon envelope that seems large enough until the electronics are attached. On paper, everything works. In the real world, one extra connector can turn “majestically airborne” into “resting with confidence on the carpet.”

A good build session starts with a scale. Not a glamorous tool, but an essential one. Each part gets weighed: motor, propeller, board, battery, driver, frame piece, switch, wire, even tape. After a while, the builder becomes strangely suspicious of heavy things. A long jumper wire begins to look like a dumbbell. A generous blob of hot glue feels like architectural sabotage. This is when the project becomes truly educational.

The second big lesson is patience. Unlike a wheeled robot, a blimp does not obey instantly. It drifts, coasts, turns slowly, and reacts to the room. A beginner may push the control forward, see nothing happen, push harder, then watch the craft glide into a curtain with quiet determination. The correct flying style is gentle and anticipatory. You do not command a blimp so much as politely suggest a direction and hope the air agrees.

Testing is best done in stages. First, verify the Arduino sketch on the bench. Then test the wireless link. Then run each motor separately. Then mount the electronics without the envelope and check balance. Only after that should the balloon be attached. Skipping steps can create mysterious problems that are hard to diagnose while the craft is floating near the ceiling like a judgmental moon.

Safety planning also becomes part of the experience. With helium, the risks are much lower, but responsible builders still avoid sharp propellers near faces, keep batteries protected, prevent wires from snagging, and avoid flying near ceiling fans. With hydrogen, the lesson is even clearer: the correct hobby experience is reading about it, respecting the chemistry, and choosing helium instead. Curiosity is wonderful; preventable fire is not a personality trait.

The most satisfying moment arrives when the blimp finally lifts with just the right amount of buoyancy. It hangs in the air, neither climbing away nor sinking sadly. The motors hum, the Arduino responds, and the craft slides forward in a slow, graceful arc. It is not fast. It is not fierce. But it feels magical because it turns code into motion and physics into something you can steer around the living room.

That is the real charm of the Arduino blimp idea. It makes engineering visible. Every decision has a consequence. Every gram matters. Every command becomes movement. And every safe, successful flight reminds builders that the best maker projects are not just about proving something can be done. They are about learning how to do it wisely.

Conclusion

An Arduino hydrogen blimp is the kind of project that earns attention because it is clever, dramatic, and just risky enough to make experienced builders lean forward. As a technical concept, it demonstrates the beauty of lightweight robotics: microcontrollers, wireless control, small motors, and buoyancy working together in a floating machine. As a safety lesson, it is even more valuable. Hydrogen offers lift, but it also brings flammability, invisible hazards, and code concerns that hobbyists should not treat casually.

The smarter modern takeaway is not “build a hydrogen blimp in your living room.” It is “build a safer Arduino helium blimp and learn everything the fun way.” You can still explore flight control, radio commands, motor tuning, balance, lift, and autonomous navigation without inviting the ghost of airship history to supervise your weekend project.

In the end, the Arduino hydrogen blimp remains a brilliant maker story: funny, bold, educational, and slightly terrifying. It reminds us that innovation works best when imagination and caution fly in formation.
